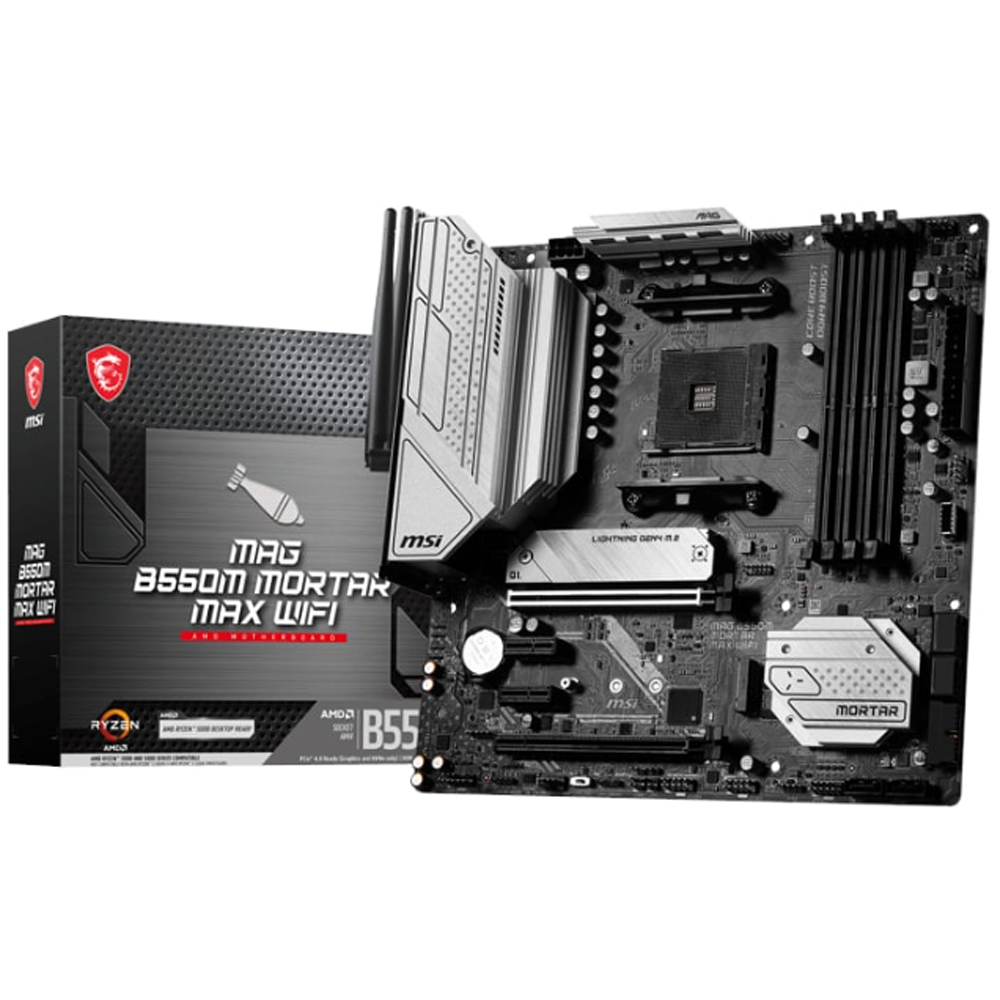

MSI B550M MORTAR MAX WIFI AMD AM4 M-ATX Gaming Motherboard

R4999,00

Categories: AMD Motherboard, Computing Accessories, Motherboard Tags: AM4, AMD, B550M, Gaming, M-ATX, MAX, MORTAR, Motherboard, MSI, Wifi, XTR03

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Supports DDR4 Memory, up to 4400+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper is built for a high-performance system and non-stop gaming experience.
Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Audio Boost: Reward your ears with the studio-grade sound quality for the most immersive gaming experience.
Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™

Description
Reviews (0)

Description

CPU (Max Support): Ryzen 9
Socket: AM4
Chipset: AMD B550 Chipset
DDR4 Memory:
- 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)
- 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 2
SATAIII: 6
M.2 Slot: 2
RAID: 0/1/10
LAN: 1x Realtek® RTL8125B 2.5G LAN
Wi-fi & Bluetooth: AMD Wi-Fi 6E
USB 3.2 Ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 Ports (Rear): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 Ports (Front): 4
USB 2.0 Ports (Rear): 2
Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC1200/ALC1220P Codec)
DisplayPort: 1
HDMI: 1
DirectX: 12
Crossfire: Yes
Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor: Micro-ATX

WHAT’S IN THE BOX:

MSI MAG B550M MORTAR MAX WIFI AM4 mATX Gaming Motherboard – Black x1
SATA Cables x2
Wi-Fi Antenna x2
Driver DVD x1
MAG Stickers x1
Quick Installation Guide x1
