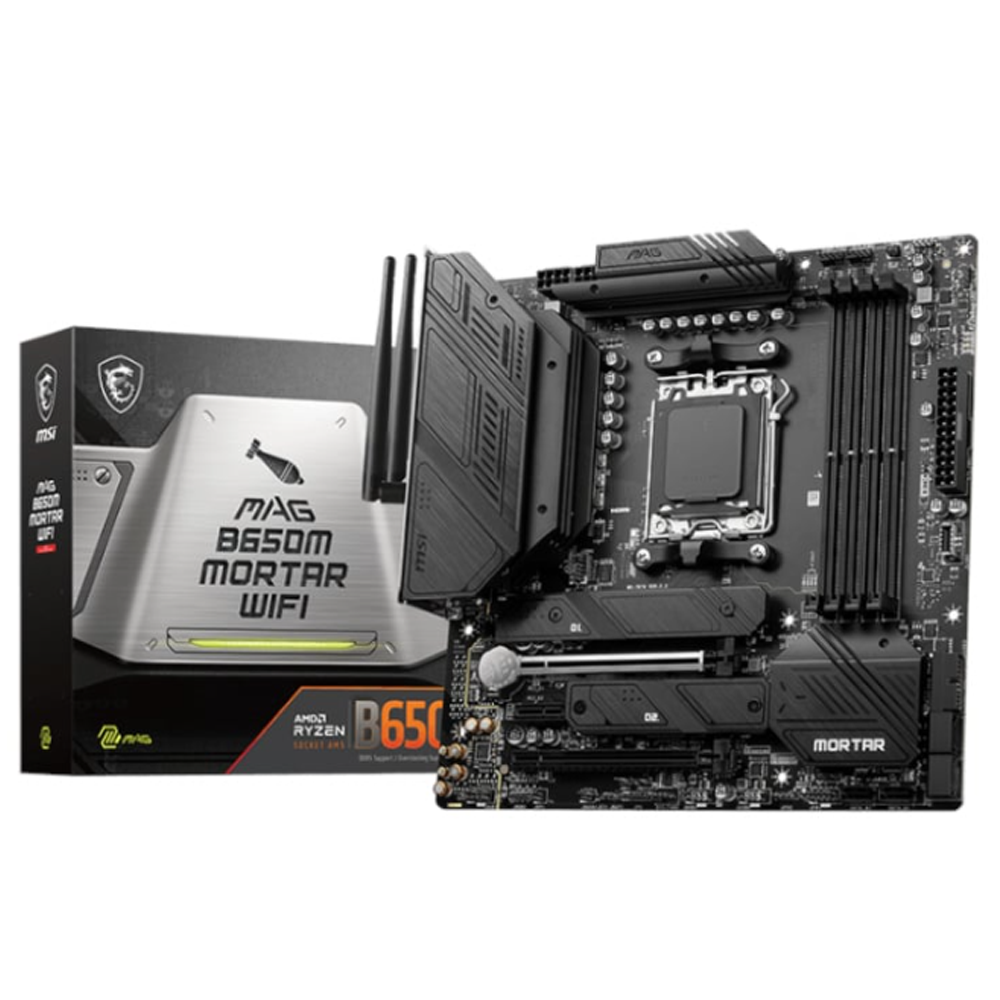

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Gaming Motherboard

R5699,00

Categories: AMD Motherboard, Computing Accessories, Motherboard Tags: AM5, AMD, B650M, Gaming, MAG, mATX, MORTAR, Motherboard, MSI, Wifi, XTR03

Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6400+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description
Reviews (0)

Description

Socket: AM5
CPU Support: Supports AMD Ryzen™ 7000 Series Desktop Processors
Chipset: AMD B650
DDR5 Memory: DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Memory Channel: Dual Channel DDR5
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 1
SATAIII: 6
M.2 Slot: 2
RAID: 0/1/10
LAN: 1x Realtek® RTL8125B 2.5Gbps LAN
Wi-Fi and Bluetooth: Intel® Wi-Fi 6E module
USB 3.2 ports (Front): 1(Gen 2, Type-C), 4(Gen 1, Type A)
USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 3(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC4080 Codec)
DisplayPort: 1
HDMI: 1
DirectX: 12
Form Factor: mATX
Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit

WHAT’S IN THE BOX:

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Gaming Motherboard – Black x1
Wi-Fi Antenna x2
SATA Cables x2
EZ M.2 Clips x2
Quick Install Guide x1
